An oval trailer light replacement can look close to the old unit in a photograph and still use a different bracket or mounting pattern. The lens is only one part of the assembly. Before ordering, compare the complete housing, attachment points and space behind the mounting surface. This is a purchasing and inspection checklist, not a wiring diagram or a certification that a particular light suits your trailer.
Record the old assembly before removing anything
Park and secure the trailer according to its instructions, and avoid working around powered wiring. Take clear photographs of the existing light, its bracket and the surrounding mounting area. Note any visible part number without assuming that a similar-looking replacement is equivalent. If disassembly or electrical isolation is unfamiliar, leave that work to a qualified installer. A few well-framed photographs can answer basic fit questions without disturbing the installation.
Measure the full bracket envelope

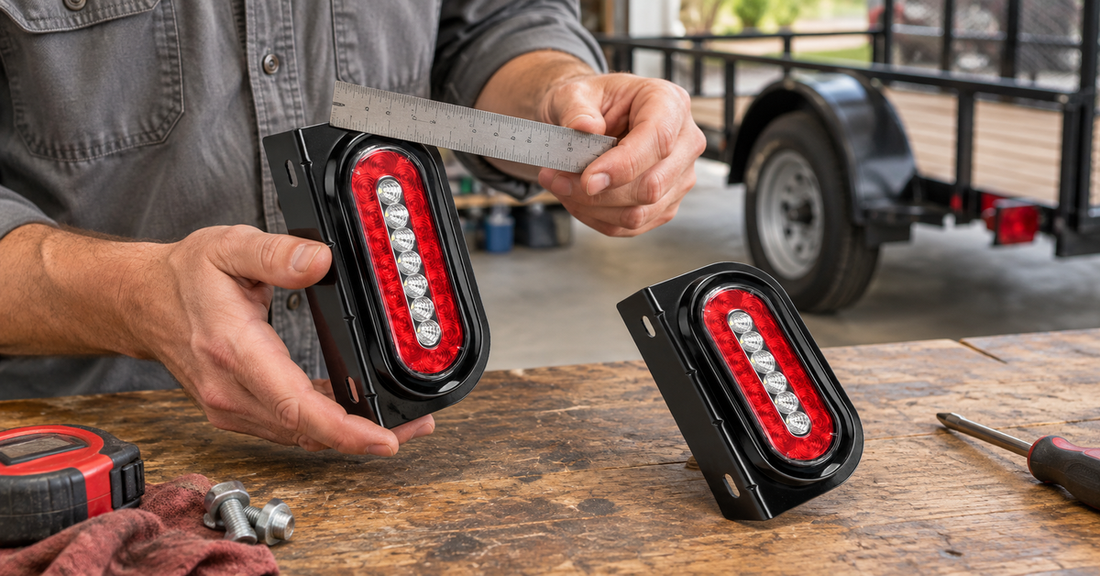

Write down the overall width, height and depth of the assembly, including the metal bracket rather than just the coloured lens. Record how far it projects from the mounting surface and whether nearby bodywork limits access. The CYFIE two-piece six-inch oval trailer light listing shows red oval lenses in black angled brackets, with clear optics in a straight central row. Use those images to identify the design, not to scale an exact drilling template from your screen.
Compare the mounting holes directly
Measure the centre-to-centre spacing of the existing attachment points and note their orientation. For slotted holes, record the slot shape and ask for the replacement bracket's dimensioned drawing rather than assuming the slots will compensate for a mismatch. Compare the drawing with the actual mounting surface. Do not drill extra holes, bend the bracket or enlarge a slot as a trial fit without appropriate guidance for both the light and the trailer structure.
Leave room for the back of the light
A front view does not show everything that must fit behind the lens. Check the available depth for the housing and whatever connector or lead arrangement the specified product actually uses. Consider access for installation and later inspection as well as static clearance. Avoid a plan that traps the lead against a sharp edge or leaves the connection inaccessible. The exact routing and strain-relief method belong in the installation instructions, not in a guess based on the front photograph.
Verify electrical specifications separately
Physical fit does not confirm supply compatibility or function. Obtain the exact operating specification, connection diagram and supported lighting functions for the selected variant. Never assign a function to a wire solely from its colour or assume that a clear section of a lens establishes how it should be connected. The page's short title is not a complete technical document. If the required information is missing, send the product link and your existing assembly details to the seller or installer before purchase.
Treat pair quantity and suitability as different checks
A two-piece package can simplify ordering a pair, but quantity does not prove that both units have the orientation or functions your installation needs. Confirm what arrives in the box, which mounting components are supplied and what must be sourced separately. Also have the installer confirm the applicable installation requirements for the trailer and destination. A product title containing waterproof or similar marketing language does not by itself verify every connection, mounting position or complete vehicle installation.
Prepare one concise enquiry
Send the seller the exact link, photographs of the existing light and a list of measurements with units. Ask for bracket dimensions, hole spacing, housing depth, electrical specification, connection information and installation instructions. Keeping these questions together reduces the risk of receiving advice for a different model. Save the reply with the order details so that the installer can compare the supplied item against the specification you checked.
Check the delivered item before installation
Compare the product and included parts with the confirmed information before making permanent changes. Inspect the lenses, housings and brackets for obvious shipping damage. If the model or dimensions differ, pause rather than modifying parts to force a fit. After installation, the required functional and installation checks should be completed by someone competent to do them. A successful unboxing or a close visual match is not proof that the lighting system is ready for road use.
